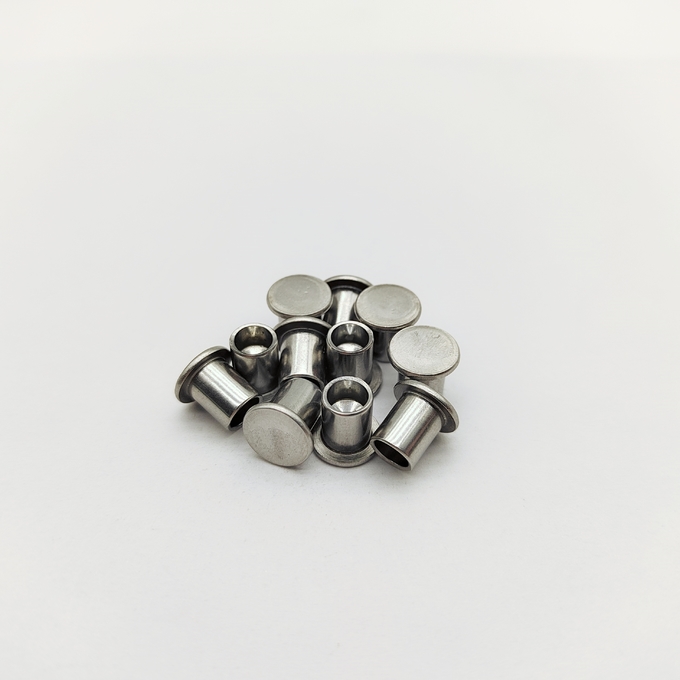

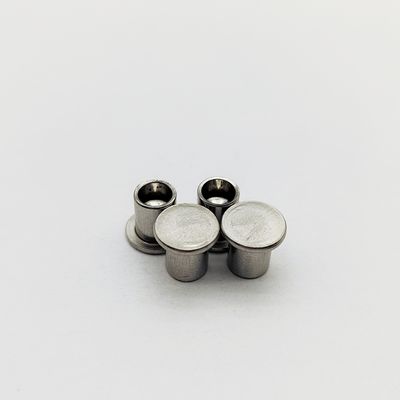

304 Stainless Steel Semi-Tubular Rivets Flat Head DIN 7340 M3-M8
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | guanbiao |
| Sertifika: | ISO9001 |
| Model numarası: | Özelleştirilebilir |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 50000 |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Plastik torba + karton + palet |
| Teslim süresi: | 15-20 iş günü |
| Ödeme koşulları: | T/T |
| Yetenek temini: | 5000000 |
|
Detay Bilgi |
|||
| Kesme gücü: | M4: 1.850N (Din En Iso 898) | ürün uygulaması: | Elektronik şasi düzeneği |
|---|---|---|---|
| Kafa stili: | düz | İplik: | HAYIR |
| Kurşun zamanı: | 15 ~ 20 İş Günü | Yüzsüz: | Pasivasyon (mat gri) |
| Kurulum yöntemi: | Perçinleme | Malzeme: | Paslanmaz çelik |
| Hoşgörülü: | +/- 0.05mm | Boyut: | Boyutunuza göre özelleştirebiliriz |
| Vurgulamak: | 304 stainless steel DIN 7340 rivets,semi-tubular rivets flat head,M3-M8 stainless steel rivets |
||
Ürün Açıklaması
304 SS Semi-Tubular Rivets - Flat Head 120° - DIN 7340 - Cold Forged - M3 to M8 Sizes
Product Attributes
| Attribute | Value |
|---|---|
| Shear Strength | M4: 1,850N (DIN EN ISO 898) |
| Product Application | Electronics chassis assembly |
| Head Style | Flat |
| Thread | No |
| Lead Time | 15~20 working days |
| Finish | Passivation (Matte Grey) |
| Installation Method | Riveting |
| Material | Stainless Steel |
| Tolerance | +/- 0.05mm |
| Dimension | We Can Customize to your dimension |
Product Description
Corrosion-resistant A2 stainless semi-tubular rivets. Flat head 120°, hollow depth 1.25-1.75D. Sizes M3-M8. Passivated finish. For electronics, furniture & machinery. Custom lengths available.
Achieve flush, high-strength joints with cold-forged A2 stainless steel semi-tubular rivets. Featuring a precision 120° flat head and controlled hollow depth (1.5D), these DIN 7340-compliant rivets provide reliable fastening for sheet metal, plastics, and leather. The passivated finish resists corrosion in indoor industrial environments.
Technical Specifications
Head Type: Flat Head (120° Countersink Angle)
Head Diameter (D): M3: 6.0mm; M4: 8.0mm; M5: 9.5mm; M6: 11.0mm
Total Length (L): M3: 6-20mm; M5: 8-30mm; M8: 12-50mm
Hollow Depth (H): 1.5D (e.g., M4: 6.0mm)
Hole Diameter (d): 0.6D (e.g., M4: 2.4mm)
Material: A2-70 Stainless Steel (304)
Surface Treatment: Passivation (Matte Grey)
Shear Strength: M4: 1,850N (DIN EN ISO 898)
Customization: Non-standard L/H ratios, head angles
Primary Uses & Applications
- Electronics chassis assembly
- Furniture hinges and brackets
- Machinery guards
- Automotive interior trim
- Leather goods hardware
How to Use
- Drill hole = Rivet diameter +0.1mm (e.g., Ø4.1mm for M4)
- Insert rivet through materials
- Set with semi-tubular rivet tool:
- Position die supporting head
- Apply pressure to deform hollow end into 1.5D flange
- Optimal pressure: M4=3.5kN
