Cold Formed Eccentric Locking Shaft Carbon Steel & Stainless Steel Smart Locks & Window Hardware Custom OEM/ODM
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | guanbiao |
| Sertifika: | ISO, GB, BS, DIN, ANSI,JIS |
| Model numarası: | 4,9*10,5 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 50000 ADET |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Plastik torba 1 küçük kutu + dış karton + paletler |
| Teslim süresi: | 10-15 iş günü |
| Ödeme koşulları: | T/T |
| Yetenek temini: | 100000 adet/gün |
|
Detay Bilgi |
|||
| Malzeme: | Paslanmaz çelik: 302.304.316 | Üretim süreci: | Soğuk başlık, soğuk dövme |
|---|---|---|---|
| Yüzey cilası/işlem: | parlatma, pasivasyon | Boyut: | 4,9*10,5 |
| İpek Türü: | makine ipliği | Paket: | Küçük kutu, küçük renkli kutu, ihracat kartonu ve güçlü ahşap palet üzerine koyun |
| Bekar: | 3.7g | ||
Ürün Açıklaması

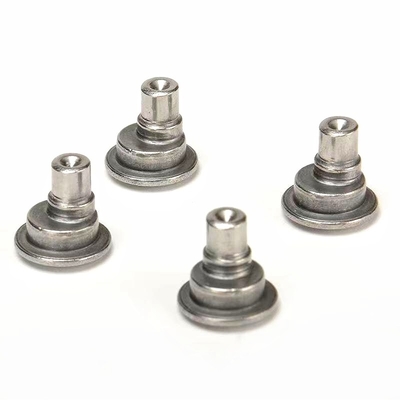

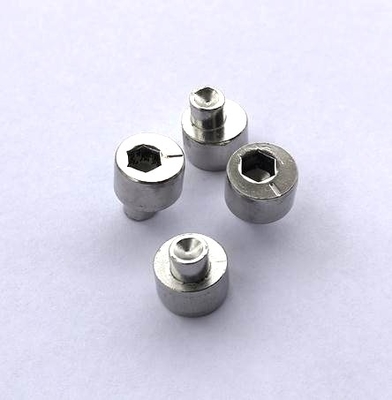

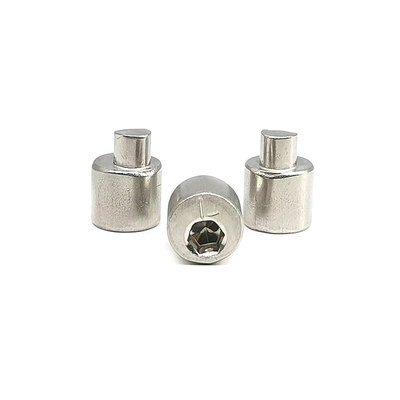

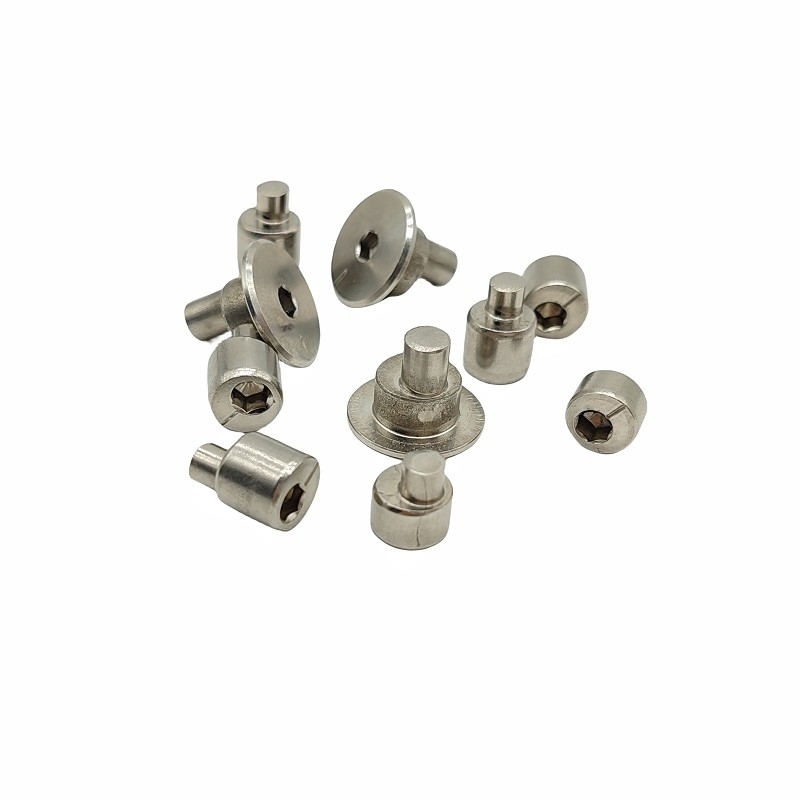

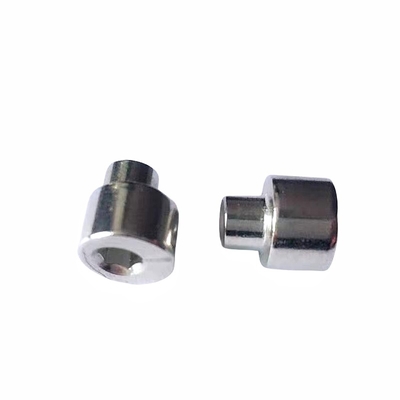

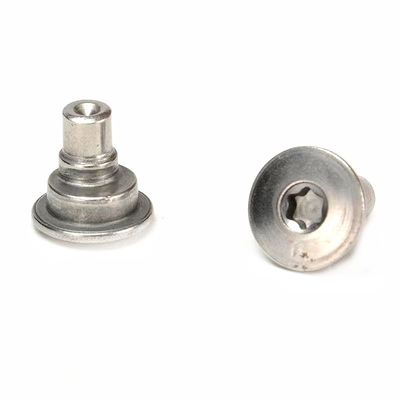

Cold Formed Eccentric Locking Shaft Carbon Steel & Stainless Steel Smart Locks & Window Hardware Custom OEM/ODM
Precision Eccentric Locking Shafts for Smart Locks & Sliding Windows
We manufacture high-performance cold-formed eccentric locking shafts designed for smart locks and thermal break sliding windows, ensuring secure and smooth operation. Made from carbon steel (high strength) or stainless steel (corrosion-resistant), our shafts feature precise eccentricity for reliable locking mechanisms. We support full customization based on your drawings or samples, ensuring perfect compatibility with your hardware systems.
✅ Key Features:
✔ Optimized for Smart Locks & Windows – Ensures smooth engagement and long-term durability.
✔ Cold Forming Technology – Enhances mechanical strength (+25% vs. machined shafts).
✔ Corrosion-Resistant Options – Stainless steel (304/316) for outdoor & humid environments.
✔ Custom Eccentricity & Dimensions – Tailored to fit your lock or window mechanism.
✔ Fast Prototyping – Samples ready in 10-15 days after drawing approval.
Product parameters
| Specification | Material Options | Surface Treatment | Remarks |
|---|---|---|---|
| Production Process | Cold Forming | – | Enhances structural integrity |
| Standard Diameter | 1.0mm – 20mm (±0.05mm) | Custom diameters available | |
| Length Range | 2.0mm – 300mm (±0.1mm) | Extended lengths on request | |
| Material Grades | • Carbon Steel: SC435/10B21/20MnB4 • Stainless Steel: 302/304/316 |
Other alloys (e.g., alloy steel) optional | |
| Hardness (HRC) | Carbon Steel: 28-32 Stainless: 20-25 |
Adjustable per application needs | |
| Surface Finish | – | Carbon Steel: • Zinc plating (8-12μm) • Black oxide • Phosphating • Electro-galvanizing Stainless Steel: • Passivation • Electro-polishing • Sandblasting |
RoHS compliant options available |
| Eccentricity Tolerance | ±0.03mm | – | Tighter tolerances achievable |
| Customization | Accept OEM drawings & samples | – | MOQ: 50,000 pcs Standard lead time: 30 days |
(Applications)
